Description

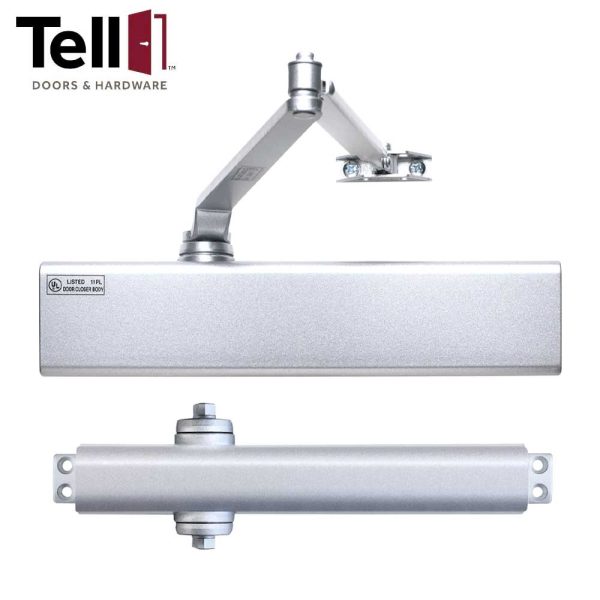

TELL DC100159 – 800 Series Heavy Duty Commercial Door Closer Grade 1 – Full Cover Backcheck – Aluminum Surface

A grade 1, heavy duty cast aluminum surface applied door closer, designed for commercial use and comes with hardware for all installation applications. UL ULC listed up to three hours fire rated. It s a 1 – 6 adjustable size for most standard door openings.

Specifications:

Performance		Complies with ANSI A156.4 Grade 1, 2,000,000 cycles UL ULC listed up to 3 hours fire rated
Chassis		Cast aluminum
Handing		Non-handed
Mounting		Regular arm Parallel arm Top jamb
Arm		Forged steel Accommodates reveals up to 3 1 4” Adjustable extension arm
Spring Power		Adjustable sizes 1 – 6 Interior and Exterior Applications
Backcheck		Adjustable, hydraulic – providing cushioning and preventing uncontrolled openings of the door
Valves		Adjustable, independent Non-critical – sweep and latch Consistent closing speeds
Fasteners		Metal screws included for hollow metal and aluminum mounting applications Wood screws included for wood door mounting applications Thru-bolts are included
Cover		High impact plastic streamlined cover
Door Range		Up to 180 degrees
Door Preparation		12” horizontal x 3 4” vertical 4- Hole mounting locations Retrofits traditional closer
Warranty		Lifetime limited

Downloads:

• Install Instruction
• Templates
• Specifications

• Additional information
