MBE ASW Advanced Scooter Workshop Software and Interface
Description:
Description:

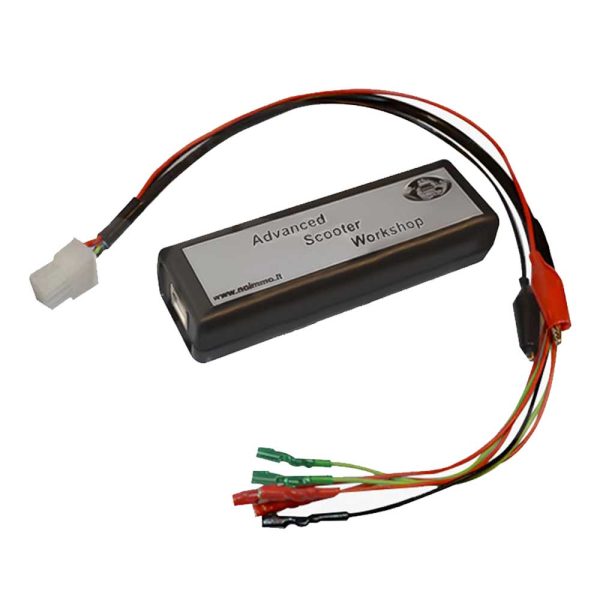

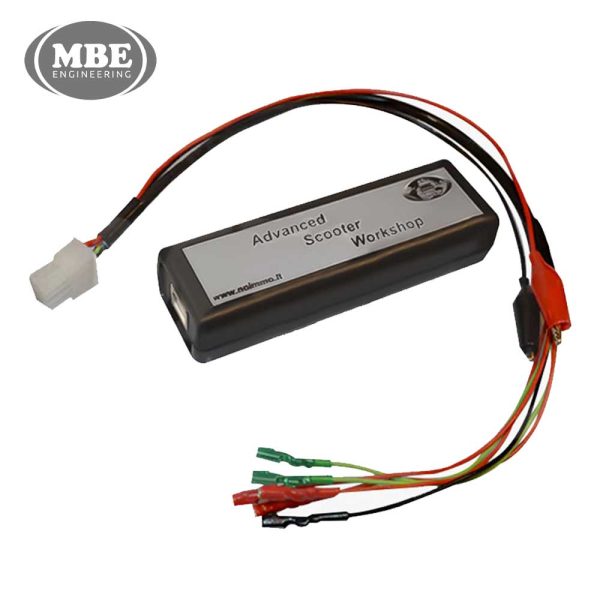

Advanced Scooter Workshop is a set of hardware and software that enables to work with ignition control unit (CDI) through K-line diagnostics. This way you can gain an access to memory functions without a need to open CDI, scrape sealant, soldering any wires or de-soldering memory IC. All you need to do is just connect four wires to controller K-line connector.
Features:
- copying of data from faulty CDI controller into another (even used one)
-
- reading T5-11 formatted Key Data from CDI controller if all keys are lost
-
- resetting of used CDI controller to the state of a brand NEW controller (virginize)
-
Downloads:
-
Advanced Scooter Workshop Guide
-
Software:
-
Software Download
-
Coverage:
- PHILIPS TSDI DiTECH PUREJET with TQFP-64 MC68HC908AZ60A (3K85K) MCU
-
- MAGNETI MARELLI IAW 5AM HW103 HW610 injection control module (HYBRID) with EEPROM 95160
-
- MAGNETI MARELLI with TQFP-64 MC68HC05Bxx (0D54J, 0D60J) MCU (system type ACI100, ACI50X, ACI60X)
-
- EFI TECHNOLOGY with ST72C334 ST72F521 MCU and 95040 95080 EEPROM (system type ACII, AC2I, AC5I, AC8I, AC19I, AC20I, AC21I, AC23I, AC25I AC32I etc.)
-
- MAGNETI MARELLI IMM003 IMM006 immobilizer module with 28 pin MC68HC05E6 (0F82B, 0G72G, 2F75B) MCU
-
- MAGNETI MARELLI MIU1 (32MIU1) injection control module throttle body with ST10F269-T3 MCU
-
- MAGNETI MARELLI MIU2 (32MIU2) injection control module throttle body with ST10F269-T3 MCU and EEPROM 95160
-
- MAGNETI MARELLI MIU4 (32MIU4) injection control module throttle body with ST10F269-T3 MCU and EEPROM 95160
-
- MAGNETI MARELLI MIU G3 (32M3G1 38M3G1) injection control module throttle body with Infineon SAK-XC2060 and EEPROM 95320
-
- MAGNETI MARELLI IAW15 injection control module with MOTOROLA MC68HC11F1 (2E87J) MCU
-
- copying of data from faulty CDI controller into another (even used one)
- reading T5-11 formatted Key Data from CDI controller if all keys are lost
- resetting of used CDI controller to the state of a brand NEW controller (virginize)
-
-
Advanced Scooter Workshop Guide
-
Software Download
- PHILIPS TSDI DiTECH PUREJET with TQFP-64 MC68HC908AZ60A (3K85K) MCU
- MAGNETI MARELLI IAW 5AM HW103 HW610 injection control module (HYBRID) with EEPROM 95160
- MAGNETI MARELLI with TQFP-64 MC68HC05Bxx (0D54J, 0D60J) MCU (system type ACI100, ACI50X, ACI60X)
- EFI TECHNOLOGY with ST72C334 ST72F521 MCU and 95040 95080 EEPROM (system type ACII, AC2I, AC5I, AC8I, AC19I, AC20I, AC21I, AC23I, AC25I AC32I etc.)
- MAGNETI MARELLI IMM003 IMM006 immobilizer module with 28 pin MC68HC05E6 (0F82B, 0G72G, 2F75B) MCU
- MAGNETI MARELLI MIU1 (32MIU1) injection control module throttle body with ST10F269-T3 MCU
- MAGNETI MARELLI MIU2 (32MIU2) injection control module throttle body with ST10F269-T3 MCU and EEPROM 95160
- MAGNETI MARELLI MIU4 (32MIU4) injection control module throttle body with ST10F269-T3 MCU and EEPROM 95160
- MAGNETI MARELLI MIU G3 (32M3G1 38M3G1) injection control module throttle body with Infineon SAK-XC2060 and EEPROM 95320
- MAGNETI MARELLI IAW15 injection control module with MOTOROLA MC68HC11F1 (2E87J) MCU
-
Coverage:
Software:
Downloads:
-
Advanced Scooter Workshop Guide
