Description

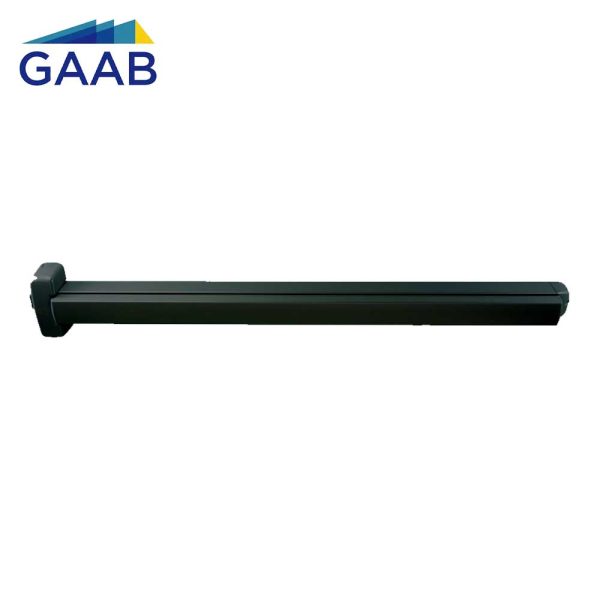

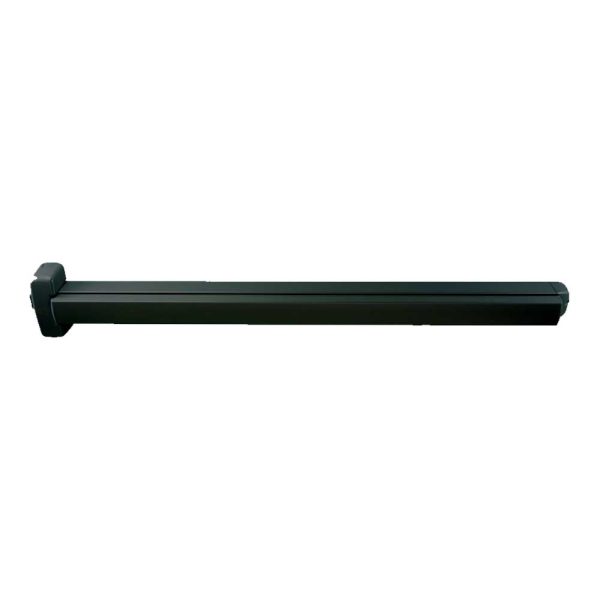

GAAB T391-01 Rim Panic Exit Device UL 305 Modular and reversible Black Matte

Description:

• 1 point latching.
• UL listed (UL 305).
• Modular and reversible.
• For single doors.
• Suitable for metal, wood and aluminium doors.
• Suitable for heavy traffic doors.
• Strike (roller type).
• Zamak-made front and back covers.
• Extruded aluminium-made rail case and touch bar.
• High performance epoxy paint finish with high strength and durability.
• Optional outside trim.
• Shipped with dogging undogging system.
• Total nominal length of the device:
  • Standard length: 33“ (850 mm)
  • Minimum length: 16“ (400 mm)
  • Suitable for doors up to 8″ (2440 mm) height – 4″ (1220 mm) width.
  • • Max weight 440 lbs (200 kgs).

    • Specifications:

      Extruded aluminum-made rail case and touch bar measurements:		16 in. – 33 in. (maximum and minimum length)
      Material:		Zamak-made front and back covers
      Finish:		High-performance epoxy Matte Black paint finish with high strength and durability.
      Application:		For single or double doors  Suitable for steel, wood, and aluminum Suitable for heavy traffic doors Suitable for frameless glass doors and storefront
      Max Dimensions:		Suitable for doors up to 8′ height and 4′ width.
      Max Weight:		440 lbs.
      Handing:		Modular and Reversible
      Latch:		Single-point latching
      Strike:		roller type
      Warranty:		2-year manufacturer warranty
      Dogging:		Includes dogging undogging system
      Certifications:		UL listed (UL 305)
