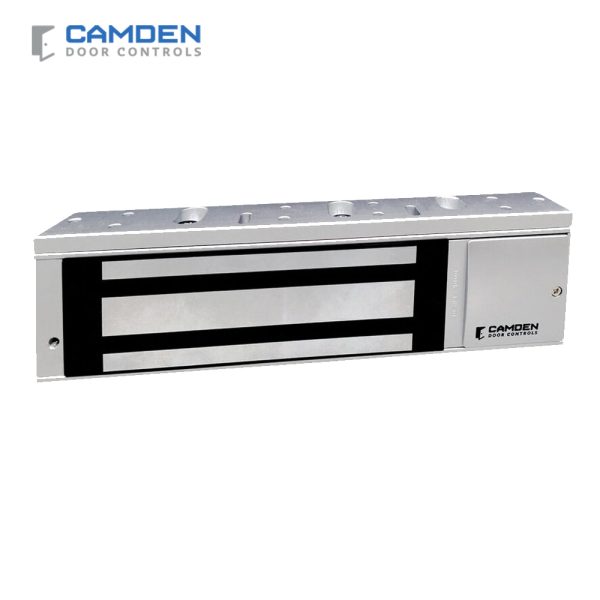

Camden CX-91S-12 Single Door Magnetic Lock Surface Mount 1200 lb – 12 24 VDC

The Camden CX-91S-12 is a single door magnalock with a holding force of 1200 lbs that can be surface mounted. Camden CX-90 and CX-91 Series single door magnetic locks offer the best performance and value. There is a range of 300, 600 and 1,200 Lb. models with the option of a built-in TDS module that provide an adjustable timer, lock sensor, door status switch, relay and LED. This Mag Lock has 1200 Lb Holding Force, Basic model

Featues:

• Weather and vandal resistant construction proven over thousands of installations
• Surface and mortise mount models
• Compatible with all access egress systems
• Field selectable 12 24 VDC operation
• On board MOV power surge protection prevents damage to the mag lock
• A range of mounting brackets and spacers available
• Lifetime warranty

• Specifications:

  Voltage:		12 24 VDC
  Current Draw:		CX-90 Series: 360 mA @ 12 VDC 180 mA @ 24 VDC CX-91 Series: 500 mA @ 12 VDC 250 mA @ 24 VDC
  Temp Range:		5°F to 122°F (-15°C to 50°C)
  Contact Rating:		TDS versions Bond Sensor: 1 A @ 30 VDC Door Status Switch: 0.5 A @ 30V AC DC
  Time Delay:		TLS versions: 0 to 30 Seconds
  Dimensions:		CX-90S-03:6-1 2 x 1-3 8 x 13 16 (165mm x 35mm x 21mm) CX-90M-03:> 8 x 1-3 8 x 13 16 (203mm x 35mm x 21mm) CX-91S-06: 9-7 8 x 1-7 8 x 1 (251mm x 48mm x 25mm) CX-91M-06: 9 x 1-1 2 x 1-1 8 (229mm x 38mm x 29mm) CX-91S-12: 10-1 2 x 2-7 8 x 1-7 8 (267mm x 73mm x 48mm) Armature Plate: 300 Lbs.: 5-1 8 x 1-1 4 x 1 4 (130mm x 32mm x 6mm) 600 Lbs.: 7-15 16 x 2-3 16 x 5 8 (202mm x 56mm x 16mm) 1200 Lbs.: 7-15 16 x 3 x 5 8 (202mm x 76mm x 16mm)

  Specification Sheets:

  • CX-90 Series_Spec Sheet_R2
  • CX-91 Series_Spec Sheet_R2

  • Manuals:

    • CX-91S Series Manual_R1
    • CX-91S-12_Mounting Template

    • Reference Guides:

      • Guide To Code Compliant Installation of Magnetic Locks
      • Magnetic Lock Cross Reference
