Description

Camden CM-45 4 Square Push Plate Switch 4-1 2 with Push to Open Sign

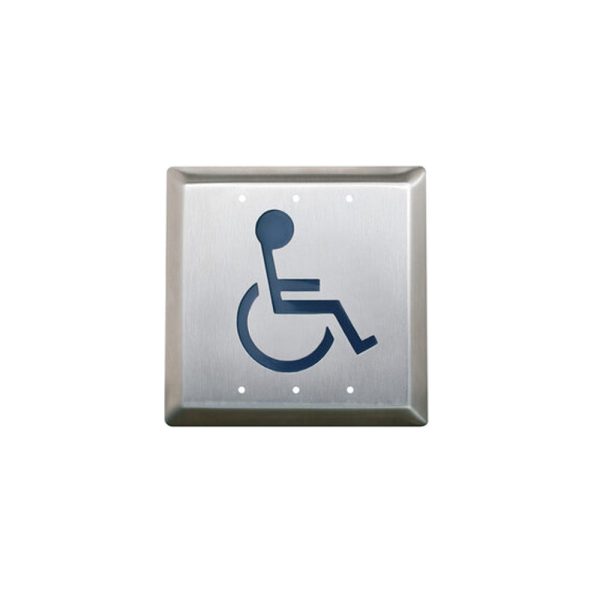

The Camden 45 4 is a 4-1 2 square push plate switch with concealed screws that mounts to standard single gang or double gang electrical boxes. The push plate features PUSH TO OPEN and the ADA logo engraved in blue. The SPDT (and optional DPDT) switches are rated 15 amps @ 30VDC. The push switches are offered with different graphics, and in various architectural finishes. Weather resistant, and water tight configurations are also available.

Features:

• CM-45 and CM-46 offer stainless steel construction. CM-46CB aluminum.
• 4 stud switch design and rubber dampers for quieter operation
• Large variety of graphics options
• Available in a range of architectural finishes
• 3 year warranty with 2 for 1 replacement

• Specifications:

  Voltage:		12 24V AC DC
  Switch Type:		Momentary
  Contact Type:		SPDT Form C
  Current Rating:		15 A @ 30 VDC
  Mounting:		Single or Double Gang
  Std. Finish:		CM-45 46: US32 630 CM-46CB: Blue Paint
  Dimensions:		CM-45 46: 4-1 2 x 4-1 2 x 1-1 4 (114mm x 114mm x 32mm)

  Specification Sheets:

  • CM-45-46_Spec Sheets_R7

  • Reference Guides:

    • Push Plate Switch Cross Reference
    • Push Button Switch Cross Reference
    • OBC Compliant Push Plate Switches_R2
    • OBC Compliant Push Plate Switches_French_R2
