Description

Autel Robotics EVO Nano+ Drone Standard Package with Remote Controller (Android and iOS compatible)

Autel Robotics EVO Nano+ mini drone features a foldable and compact body weighing only 249g, with a 1 1.28-inch(0.8-inch) CMOS sensor for 50MP photos and Ultra HD 4K HDR video @30fps. An RYYB color filter array design with a large aperture of f 1.9 offers superior noise reduction capabilities and the power to effortlessly produce quality images in low-light conditions.

1 1.28 CMOS Imaging Sensor		50MP Photos		4K 30fps HDR Video
3-Axis Mechanical Gimbal		28 Mins Flight Time		6.2 Miles Transmission Distance

Specification:

Nano Aircraft

Takeoff Weight (without Accessories)		249g
Dimensions (including blades)		Folded: 140×90×50mm Unfolded: 264×310×50mm
Wheelbase		231mm
Max Ascent Speed strong>		6m s (sport), 4m s (normal), 3m s (stable)
Max Level Flight Speed		4m s (sport), 3m s (normal), 2m s (stable)
Max Level Flight Speed (no wind, near sea level)		13m s (sport), 10m s (normal), 5m s (stable)
Max Takeoff Altitude		4000m
Max Flight Time (no wind)		28min
Max Hovering Time (no wind)		26min
Max Flight Distance (no wind)		16.8km
Max Wind Resistance		Level 5
Max Tilt Angle		33°(movement), 25°(normal), 25°(stable)
Max Angular Velocity		200°(movement), 120°(normal), 60°(stable)
Operating Temperature		-10°C ~ 40°C
Transmission Power (EIRP)		FCC:≤30dBm
GNSS		GPS
Hovering Accuracy		Vertical:±0.1m (when the visual positioning is active), ±0.5m (with GPS positioning); Horizontal:±0.3m (when the visual positioning is active), ±1.5m (with GPS positioning);
Built-in storage		No
SD storage		Max. support 256GB（UHS-3 rating required）

Gimbal

Stabilization		3-axis
Mechanical Range		Pitch: -125°~35° Roll: -34°~33° Yaw: -25°~25°
Controllable Range		Pitch: -90°~ 0°
Max Control Speed (pitch)		30° s
Angular Vibration Range		±0.003°

Perception System

Forward		Accurate measurement range：0.5~16m Effective sensing speed：<10m s FOV：Horizontal<40°,Vertical<30°
Backward		Accurate measurement range：0.5~18m Effective sensing speed：<12m s FOV：Horizontal<40°,Vertical<30°
Downward		Accurate measurement range：0.5~20m Visual hovering range：0.5~40m FOV：Horizontal<40°,Vertical<30°
Operating environment		Forward, backward: Surface with clear pattern and adequate lighting(lux> 15) Downward: Surface with clear pattern and adequate lighting(lux> 15); Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.)

Camera

Sensor		CMOS：1 1.28 inch Effective pixels：50MP Pixel size: 2.44μm*2.44μm (Bin2)
Lens		FOV: 85° Equivalent focal length: 23mm Aperture: f 1.9 Focus range: 0.5m ~ ∞ Focus mode:：PDAF+CDAF MF
Shooting mode		Automatic mode (P gear): EV adjustable, ISO Shutter automatic Manual mode (M gear): ISO Shutter adjustable, EV not adjustable Shutter priority (S file): Shutter EV adjustable, ISO automatic
ISO range		Video：ISO100 ~ ISO6400 Photo：ISO100 ~ ISO6400
Shutter speed		Photo Mode：1 8000 ~ 8s Other：1 8000 ~ 1 frame rates
Portrait blur		Real-time image transmission portrait blur and photo portrait blur
Defog mode		Support
Zoom Range		Digital zoom：1 ~ 16 times
Photo format		JPG DNG JPG+DNG
Photo resolution		50MP：8192×6144（4:3） 12.5MP（default）：4096×3072（4:3） 4K：3840×2160（16:9）
Photo shooting mode		Single shot Burst shooing: 3 5 Auto exposure bracketing(AEB): 3 5 shots Interval: 2s 3s 4s 5s (default) 6s … 60s (DNG min 5s) HDR imaging: 3840×2160
Video coding format		H265 H264
Video resolution		3840×2160 p30 25 24 2720×1528 p30 25 24 1920×1080 p60 50 48 30 25 24
Max bitrate		100Mbps
Timelapse		Original image:3840*2160，JPG DNG Video: 4K P25
Panorama		Horizontal Vertical Wide-angle Spherical Original image: 4096*3072, JPG DNG
Supported file system		Fat32、exFat
Video format		MP4 MOV
WIFI transfer		20MB s

Remote controllor and image transmission

Operating frequency		2.400-2.4835GHz 5.725-5.850GHz 5.150-5.250GHz
Backward		Accurate measurement range：0.5~18m Effective sensing speed：<12m s FOV： Horizontal<40°, Vertical<30°
Max transmission distance (unobstructed, free of interference)		FCC：10km
Operating temperature		0°C ~40°C
Transmission power (EIRP)		FCC：≤30dBm
Battery capacity		3930mAh
Max battery life		~ 3.5h (when connected to a mobile phone) ~ 2.5h (when not connected to mobile phone)
Interface type		Type C
Transmission system		Autel SkyLink
Realtime transmission quality		Transmission distance<1km：2.7K 30fps Transmission distance>1km：720P 30fps
Transmission bitrate		90Mbps
Transmission delay		≤200ms

Adapter

Input		100-240V 50-60HZ
Output		5V==3A,9V⎓==A,12V==2.5A
Rated power		30W

Aircraft Battery

Capacity		2250mAh
Voltage		7.7V
Max charging voltage		8.8V
Battery Type		Li-Po 2S
Energy		17.32Wh
Charging temperature		5~45℃
Single battery charging time		90min
Max charging power		30W

App

Mobile App		Autel Sky
Mobile system required		iOS 12.0 and above Android 8.0 and above

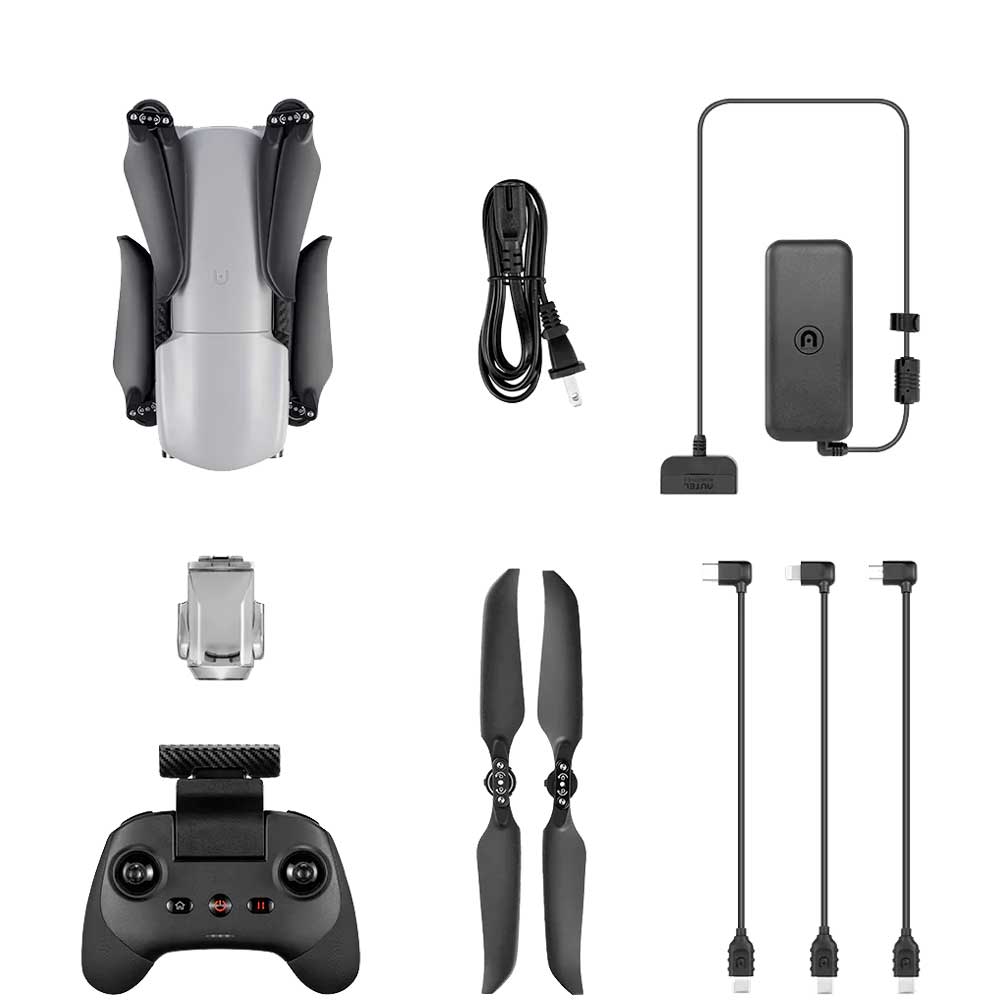

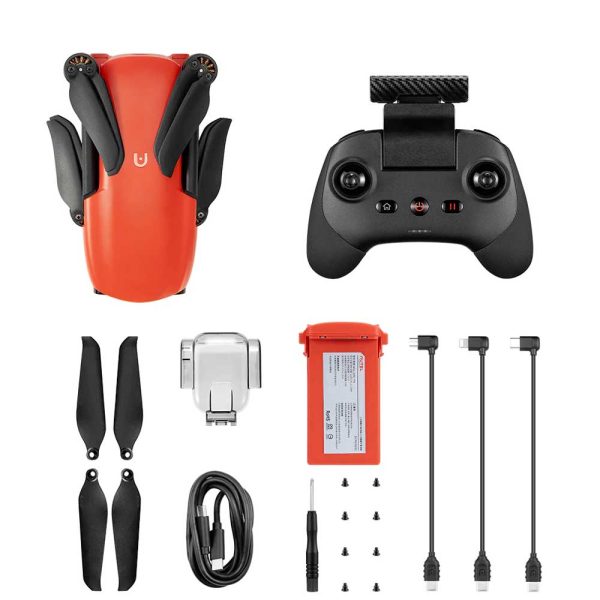

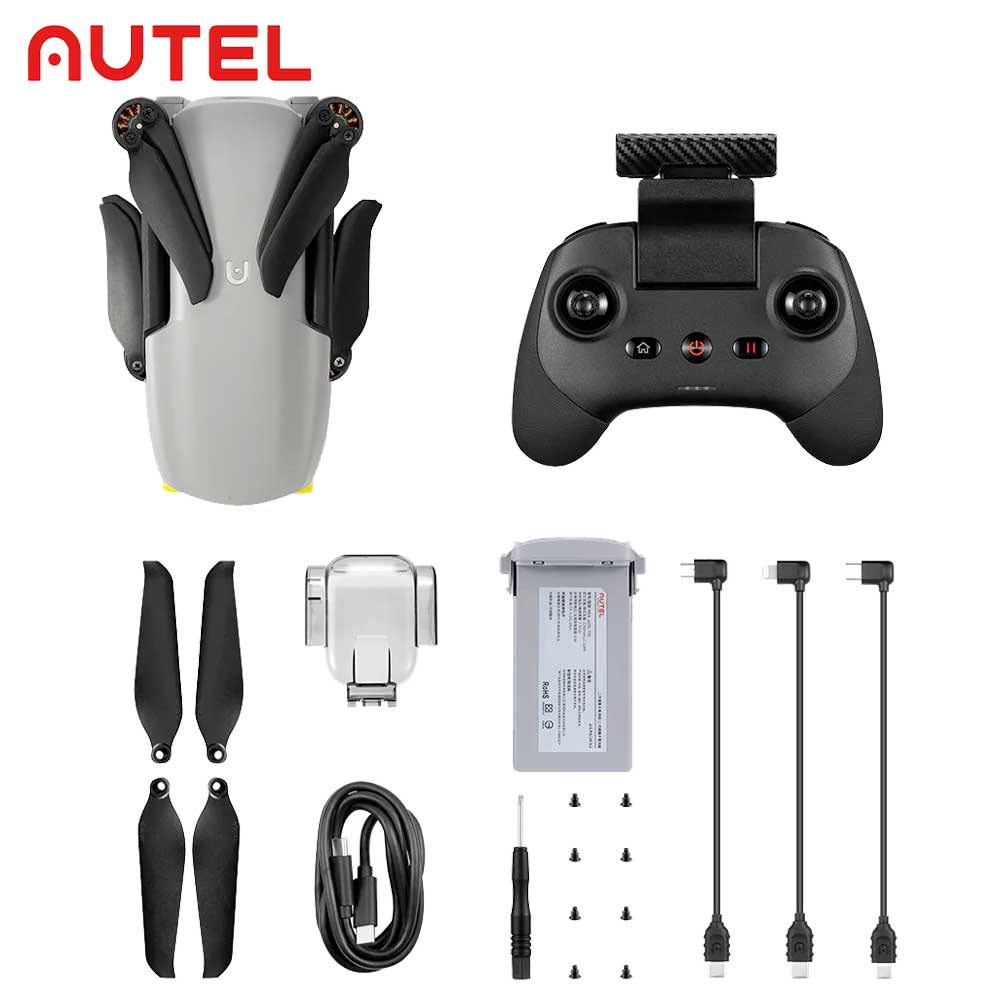

Package List:

Autel Sky

Built to accompany the EVO Nano and EVO Lite, the Autel Sky app enables beginners and veterans alike to get professional-level shots at the touch of a button with four automatic shooting modes (flick, rocket, fade away, and Orbit). Make your shots even more unique using the app‘s time-lapse, panoramic, tracking, and portrait modes. Done shooting? Instantly upgrade your footage from impressive to unforgettable using the app s vast selection of ready-made video templates and soundtracks. From flying to shooting to editing, Autel Sky is a must-have companion for any videographer hoping to make an impact.

Compatible with：EVO Nano, EVO Nano+, EVO Lite, EVO Lite+

Additional information

Color	Space Gray, Classic Orange, Red, Arctic White
