Autel – MaxiSys Ultra Automotive Diagnostic Tablet With Advanced MaxiFlash VCMI

PLEASE NOTE: This Item is Not Eligible for Return or Exchange

–Call For Product Pricing and Product Condition–

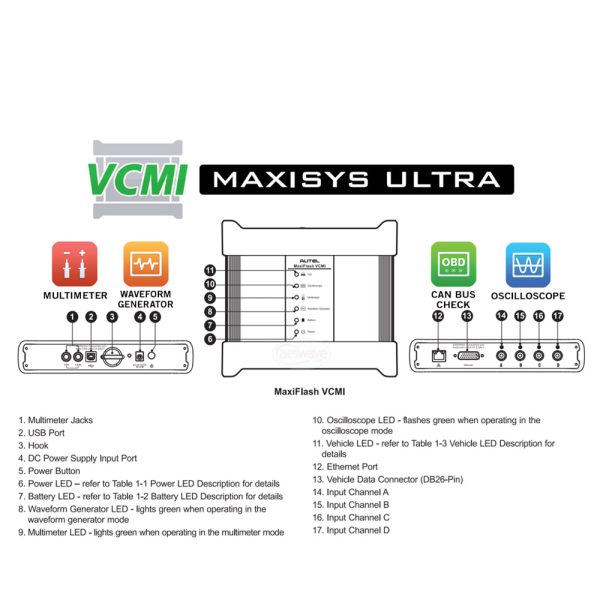

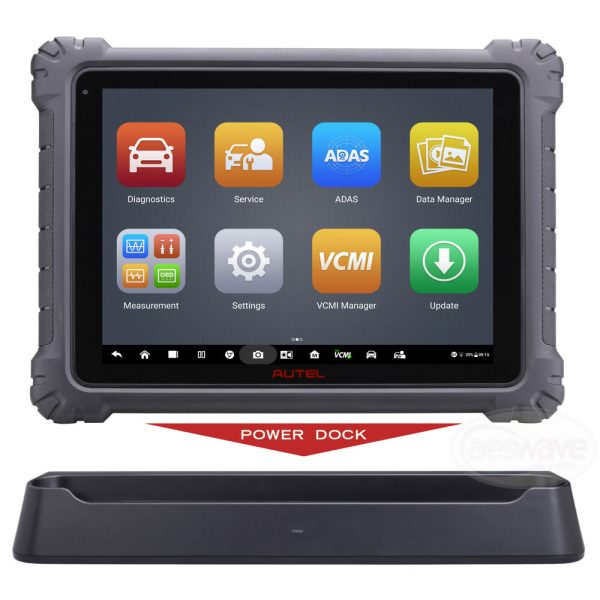

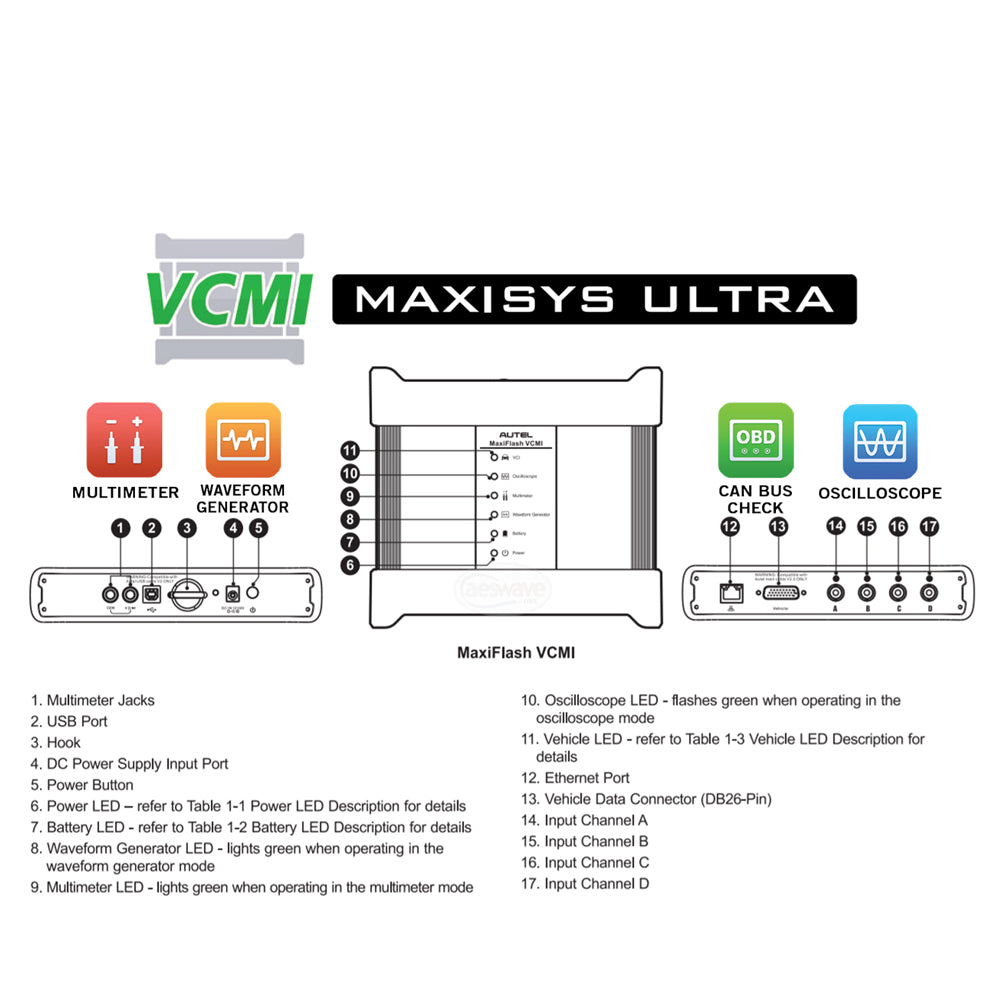

The MaxiSys Ultra is Autel’s most ambitious diagnostics tablet designed to maximize technician intelligence. It features a 12.9-inch touchscreen tablet with Android 10.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features and Intelligent Diagnostics options, the Ultra offers the technicians step-by-step repair guidance. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.

Description:

• Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
• Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
• Automatic system and software updates with real-time push message notifications via internet
• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

• Specification:

  Operating System		Android 10.0
  Processor		Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
  Memory		4GB RAM & 256GB On-board Memory
  Display		12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
  Connectivity		WiFix2 (802.11 a b g n ac 2×2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (Two USB HOST Type A, one USB mini device) HDMI 2.0 SD Card (Support up to 256GB)
  Camera		Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
  Sensors		Gravity Accelerometer, Ambient Light Sensor (ALS)
  Audio Input Output		Microphone Dual Speakers 3-Band 3.5 mm stereo standard headset jack
  Power and Battery		18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC DC power supply with the temperature between 0°C and 45°C
  Input Voltage		12V 3A Adapter
  Operating Temp.		0 to 50°C (32 to 122°F)
  Storage Temperature		-20 to 60°C (-4 to 140°F)
  Dimensions (WxHxD)		366.5 mm (14.43 ) x 280.9 mm (11.06 ) x 34 mm (1.34 )
  Weight		2.18kg (4.81 lb.)
  Protocols		DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
