TOPDON IGNITION CLAMP

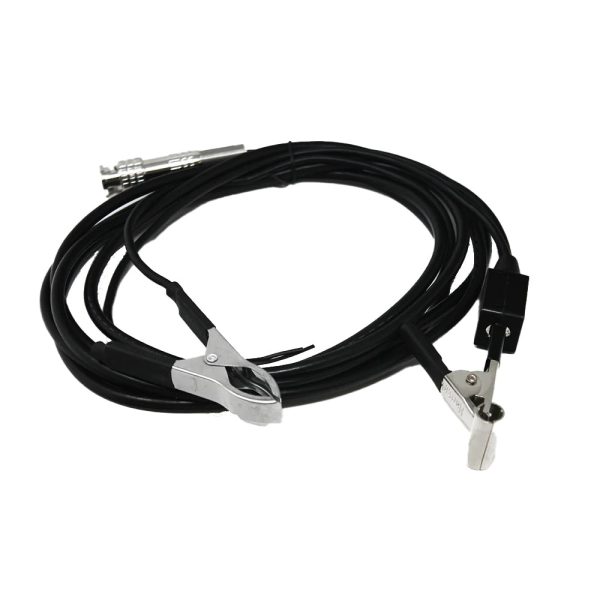

This ignition pick-up is suitable for secondary-distributor ignition analysis, secondary-simultaneous ignition analysis, and secondary-direct ignition analysis. It features a BNC connector for connecting to CH1 CH2 CH3 CH4, a crocodile clip for grounding, and a high-voltage clip for connecting high-voltage lines. It also has an attenuator equipped for high-pressure attenuation to prevent the Phoenix Scope from being impacted.

Please note that the high voltage clip should be clamped on the insulated lead (COP Extension Cord) instead of on the spark plug to prevent breakdown and electric shock. Additionally, it is recommended to keep a distance of 2 inches from other high-voltage lines to avoid interference.
