Description

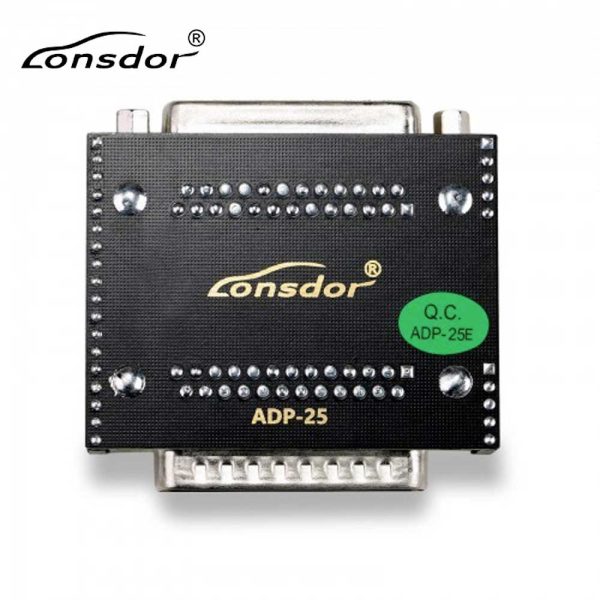

Lonsdor Super ADP 8A 4A Adapter for Toyota Lexus Smart Key Programming Work with K518USA

Description:

• Support min.90% Toyota Lexus(2013~2021 8A 4A) smart key programming without pin code.
• 8A: DST-AES 88 A8 A9 AA
• 4A: HITAG-AES

• ADP+K518 (Read data+OBD) Highlights:

  • Support min.90% Toyota Lexus(2013~2021 8A 4A) smart key programming without pin code.
  • • 8A: DST-AES 88 A8 A9 AA
    • 4A: HITAG-AES
    • • Support Emergency start after programming
      • 3Can delete lost keys
      • Can add three or more keys
      • Must be work with K518 series (K518S K518ISE K518 Pro..)
      • All Keys Lost requires an LKE emulator as well.
      • Data read by ADP adapter can be reused for programming. (The rolling code from dealer changes each time.)

      • Notice:

        • ADP adapter can work without Toyota AKL license or upgrade subscription.
        • ADP can only be bound to one K518 device.Once ADP is bound, it cannot be unbound.

        • Lonsdor Super ADP 8A 4A Adapter Functions:

          • Backup immodata
          • Add key by OBD
          • All key lost
          • Delete key
          • Free password to program dealer key & Lonsdor FT specific key

          • How to Use Lonsdor Super ADP?
            Connection:

            • Locate the smart box.
            • Connect Lonsdor ADP 8A 4A Adapter to K518 series programmer interface.

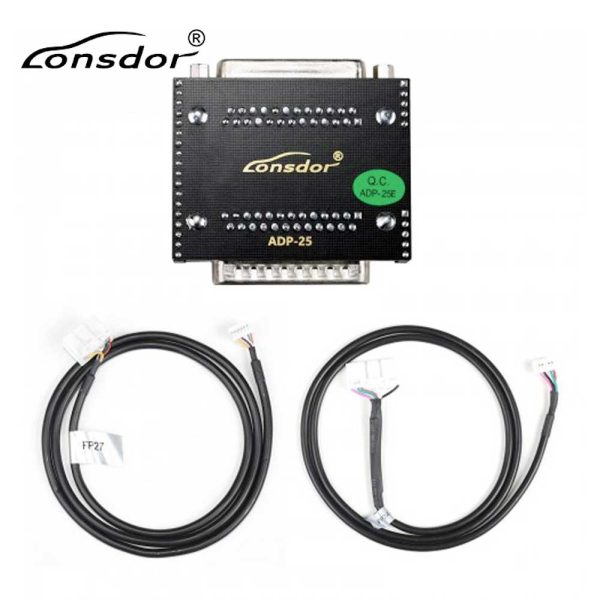

            • Disconnect the interface between the smart box and the car, then connect the smart box and ADP adapter via the professional wire harness.
            • Connect ADP adapter to the OBD port of the vehicle.

            •

              Operations:

              Make sure the K518 key programmer WiFi connection is good, then you can do the following operations based on the tips on the K518 series machine.

              • Backup IMMO data
              • Generate emulator key AKL (8A 4A)
              • Add smart keys
              • Delete smart keys

              • Note: No need to generate Lonsdor LKE smart key emulator when adding smart keys. However, you must generate Lonsdor LKE smart key emulator when all your keys are lost.

                Lonsdor ADP Adapter Toyota Car List:

                • 2013-2021 Toyota Camry
                • 2013-2021 Toyota Camry
                • 2014-2021 Toyota Land Cruiser
                • 2014-2021 Toyota Prado
                • 2015-2021 Toyota Crown
                • 2015-2021 Toyota Alphard
                • 2015-2021 Toyota Vellfire
                • 2015-2021 Toyota Previa
                • 2018-2021 Toyota C-HR
                • 2018-2021 Toyota Izon
                • 2018-2021 Toyota Wildlander
                • 2019-2021 Toyota Avalon HV
                • 2014-2021 Toyota Rav4
                • 2015-2021 Toyota Prius
                • 2019-2021 Toyota Avalon
                • 2013-2019 Toyota Corolla EX
                • 2021-2021 Toyota Harrier

                • Lexus 8A

                  • 2018-2021 Lexus UX series
                  • 2013-2021 Lexus RX series
                  • 2017-2021 Lexus NX series
                  • 2013-2021 Lexus LS series


                  • Toyota 4A

                    • 2021-2021  Toyota Livin
                    • 2021-2021 Toyota Allion
                    • 2019-2019 Toyota Corolla

                    • Other Models:

                      • 2019-2021 Toyota Corolla HV
                      • 2019-2021 Toyota Levin
                      • 2019-2021 Toyota Levin HV
                      • 2013-2021 Lexus IS series
                      • 2013-2021 Lexus G series
